Approx. dimensions: Shape and size freely selectable according to your specifications

Pole: aluminum, 84mm, wall thickness 5mm

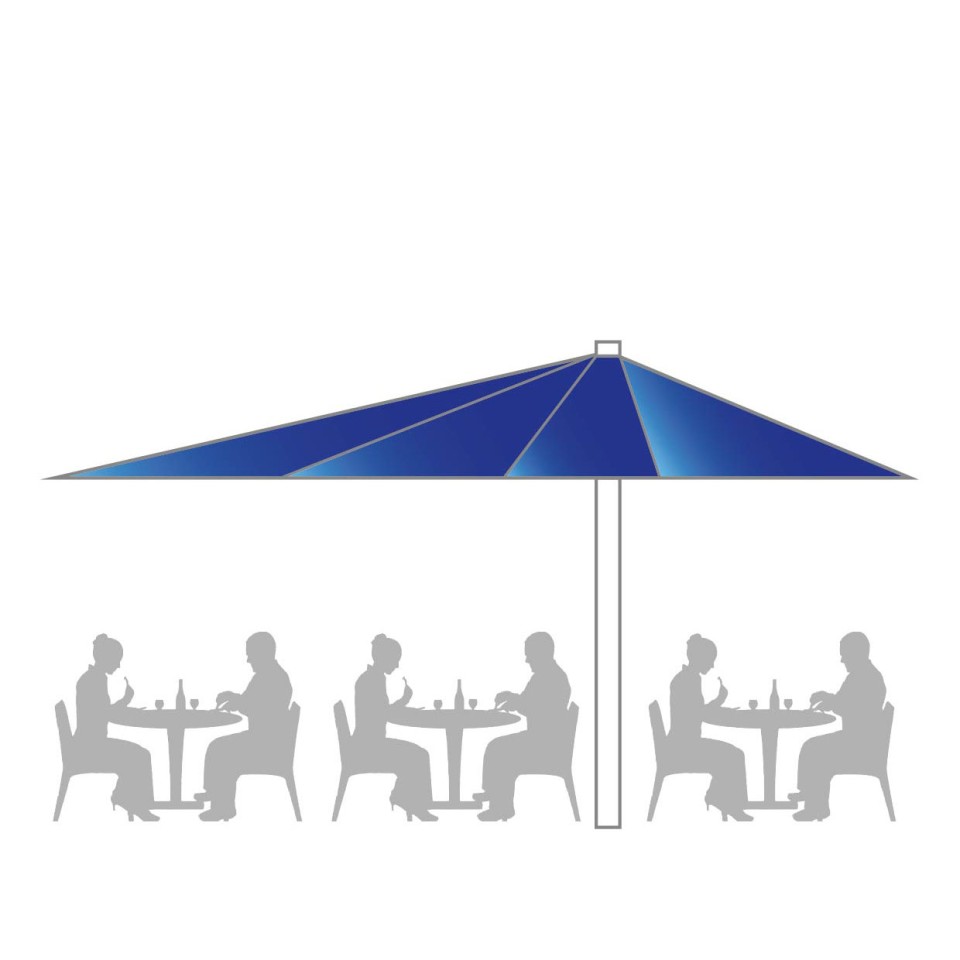

Clearance height: 225cm

Operation: Crank drive

Special feature:
Closes over table and patio furniture thanks to telescopic mechanism
Extreme wind stability thanks to solid pole and crown made of high-quality aluminum

Frame / pole & fabric color: See color selection

Optional fabric design:
Acrylic awning fabric: 100% acrylic 285-300g/m², advertising print possible
Acrylic Lumera: 100% acrylic 290g/m², advertising print possible
Acrylic ProNature: 100% acrylic 285 - 300 g/m²; with air purification effect, advertising imprint possible
Tempoteststar FR: 100% polyester 300 g/m², fire protection certificate B1
Ferrari Precontraint 302: polyester fabric with PVC coating 480 g/m², fire protection certificate B1, advertising print possible

Further information on the fabric versions can be found in the "Fabric colors / versions" section

Included in the scope of delivery. PVC weather protection cover, light gray

Special feature: 5-year guarantee (in accordance with the CARAVITA guarantee conditions)

Pleaseclickon "change" for the "floor stand" featureand select the appropriate fastening.

Slab stand DUBLIN:
100x100 cm, galvanized steel, with levelling screws for concrete slabs 40x40x5 cm. With castors and cover on request.

up to 4 m → 8 panels
up to 4.5 m → 12 panels
up to 5 m → 16 panels
up to 6 m → 20 panels
up to 7 m → 24 panels

BBK ground socket:
For setting in concrete, 35 cm long. The sunshade is screwed on directly. Ground-level finish. For fully concreted surfaces.

BBKE ground socket:
As BBK but with power supply In waterproof housing: initial installation by electrician required.

Foundation required for BBK + BBKE ground socket:

up to 4 m → 40x40x80 cm
up to 6 m → 60x60x80 cm
over 6 m → 80x80x80 cm

BBL ground socket:
61 cm long. The shade is screwed on directly. For paved floors or mixed floors with soil, sand or cavities.

BBLE ground sleeve:
As BBL but with power supply In waterproof housing. Initial installation by electrician required.

Foundation required for BBL + BBLE ground socket:

up to 4 m → 40x40x80 cm
up to 6 m → 60x60x80 cm
over 6 m → 80x80x80 cm

Base plate BB:
Powder-coated, 70 x 70 x 1 cm, steel plate with screw-on stand and holes for screwing to the foundation. Dead weight 39 kg:

Screw-on base (Krinner):
Length 130 cm, Ø 14 cm. Hot-dip galvanized metal tube with spiral thread for screwing into the ground. Extremely stable.

Universal plate stand:
4 hot-dip galvanized plates, connected with an additional steel plate. 148x148x2.7 cm, net weight 214 kg.

MULTICUB: Steel baskets suitable for the Monaco and Dublin slab stands or as a complete set
Gabion umbrella stand with seat function. HPL seat cushion. Seat height 54 or 84 cm.

Premium Acrylic Awning Fabric:

The high-quality acrylic awning fabric is made of 100% solution-dyed branded acrylic. Unlike conventional yarn dyeing, the color pigments are incorporated directly during the fiber production process. This ensures highly reliable protection against harmful UV radiation while maintaining long-lasting, vibrant, and lightfast colors.

The robust acrylic fabric also impresses with its high tear resistance. A special protective finish makes the material water- and dirt-repellent. This provides a durable and proven solution for long-term outdoor use.

Fabric Specifications

− Waterproof 300 – 460 mm water column, EN 20811
− High color and weather fastness (7 – 8 of 8)
− Water- and dirt-repellent
− 100% acrylic 285 – 300 g/m²
− Custom branding on canopy and valance possible

Many fabrics are also available in All Weather quality. Waterproof up to 1000 mm water column, EN 20811.

Premium Acrylic ProNature:

With Acryl ProNature, CARAVITA presents an innovative fabric option with added value: a special finishing treatment actively contributes to improving air quality. Through a photocatalytic process, pollutants such as nitrogen oxides, sulfur oxides, and organic compounds are reduced – while unpleasant odors are neutralized at the same time.

This creates a noticeable contribution to greater sustainable quality of life outdoors. In terms of durability, weather resistance, and technical performance, Acryl ProNature fully matches the proven classic acrylic fabric.

− Waterproof 300 – 370 mm water column, EN 20811
− High color and weather fastness (7 – 8 of 8)
− Water- and dirt-repellent
− 100% acrylic 285 – 300 g/m²
− Custom branding on canopy and valance possible

Tempoteststar FR:

The Tempoteststar fabric collection by PÀRA consists of a flame-retardant textile certified according to the recognized fire protection class B1. The high-quality, 100% solution-dyed polyester is available in a wide range of colors and is particularly suitable for applications where fire safety requirements play a central role.

− Flame-retardant, fire protection class B1 (DIN 4102)
− Oil-, water-, and dirt-repellent
− High color and weather fastness (7 – 8 of 8, DIN EN ISO 105 B04)
− Waterproof 280 – 300 mm water column, UNI EN 20811
− 100% solution-dyed polyester 300 g/m²

Ferrari Precontraint 302

This PVC-coated sun protection membrane is characterized by exceptional durability and strength. It is completely waterproof and meets high flame-retardancy standards – properties that prove particularly valuable in demanding outdoor environments.

− Not suitable for Big Ben Freestyle, Belvedere, Grande
− Flame-retardant, fire protection class B1 (DIN 4102)
− Polyester fabric with PVC coating
− Completely waterproof
− Dirt-repellent
− High color fastness (7 – 8 of 8, DIN EN ISO 105-B02)
− Surface weight 480 g/m²
− Custom branding on canopy and valance possible

Wind roof and wind vent:

Wind vent: The sewn-in vent lies on the canopy, lifts in the wind and reduces wind load.

Wind roof: Features an additional frame. Enhances the appearance and improves wind resistance. Heat can escape upwards, preventing heat build-up.

Valance types:

Flowing valance: Seamless transition from canopy to valance without a visible edge. Moves in the wind.

Attached valance: Visible edge between canopy and valance. Side sections are connected, reducing movement – ideal for advertising umbrellas.

Protective cover in PVC (light grey)

Protective cover in acrylic (light grey or matching canopy color)

Cover rod: Telescopic rod for easy handling when placing the cover.

Mast protection padding: Height 90 cm, padding thickness 4 cm, fastening with Velcro.

Base protection padding

Accessories such as heaters, integrated lighting and motor drives are available for BIG BEN series umbrellas.

Made to measure according to your wishes - BIG BEN Freestyle

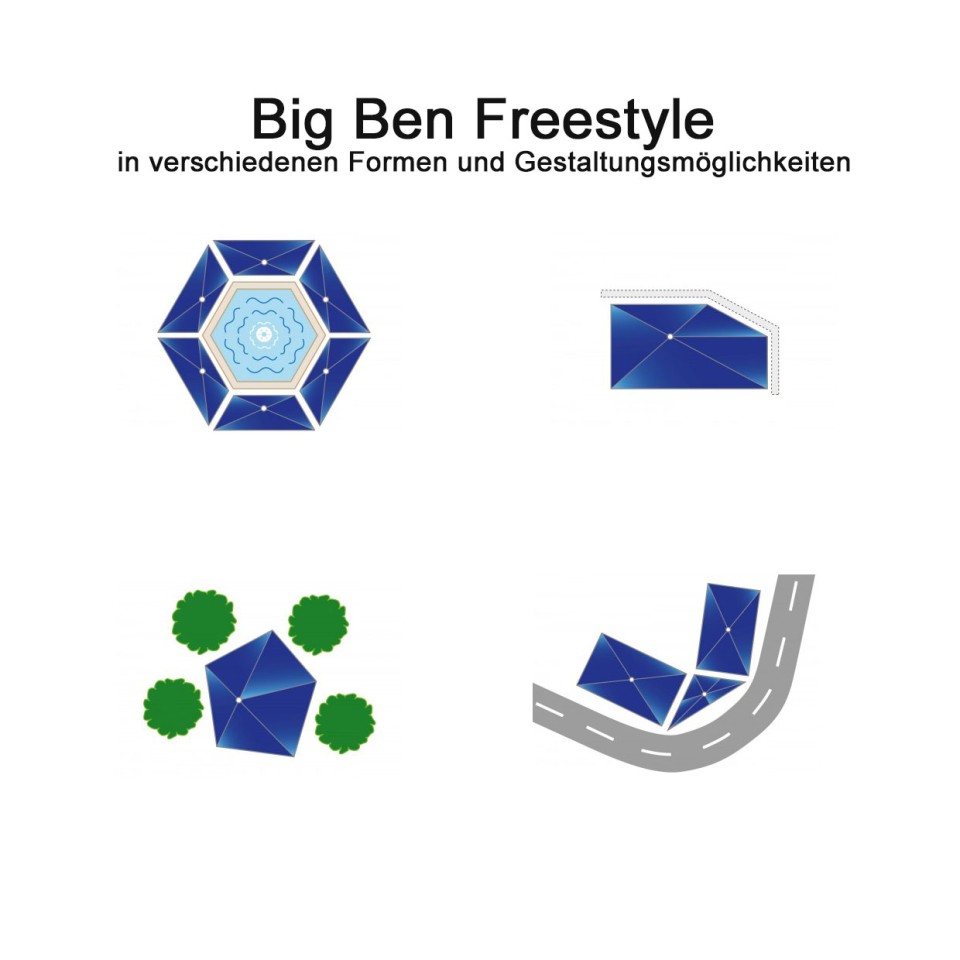

A standard size sunshade does not fit your needs or requirements? No problem: The gastro umbrella Big Ben Freestyle is manufactured individually according to your specifications. Shape and size are freely selectable. With a side length of up to 7m and a surface area of 36m², the Big Ben Freestyle parasol not only guarantees efficient shading - its unusual shape also sets real design accents and makes it an attractive eye-catcher.

The new parasol Big Ben Freestyle is a highly individual all-rounder. You are completely free to determine the shape of the parasol and the length of the individual sides. After receiving your personal design and checking the technical feasibility, your custom-made Big Ben Freestyle goes into production.

Both decentralized poles, recesses for wall projections or impressive form designs can be realized with the individual parasol. Thus, outdoor areas of up to 36 m² can be effectively shaded down to the last corner.

Like all parasols in the Big Ben series, Big Ben Freestyle benefits from a particularly robust construction and great versatility. Upon request, their custom parasol can also be equipped with integrated light and heating system.

CARAVITA is regarded as the leading brand for high-quality sunshades and sun sails and as a synonym for quality and design. With spans of up to seven meters, the noble large umbrellas create space for all conceivable uses and, thanks to an exceptionally robust construction, can withstand even high wind loads. Innovative mechanisms open each umbrella size as smoothly as on the first day, even after years of use, and ensure easy and convenient handling. CARAVITA parasols are characterized by handcrafted, made-to-measure production. The complete selection of fabric and frame colors can be individually combined. This guarantees - in connection with many other brilliant extras - the fulfillment of highest demands in gastronomy, hotel business and in the private garden.

• Individual design: over 130 fabric and 200 frame colors according to the customer's wishes.
• Durable products: Due to high-quality aluminum and stainless steel components
• Innovative mechanics: Ensures smooth operation for years to come
• High stability: Thanks to above-average wall thickness of pole and struts
• Special shapes made to measure with the Big Ben Freestyle
